Gramophone Springs

Spring and needle prices

Date 01/11 /07 Tel. 01234 340829
Int. +44 1234 340829
Email jmw.bedford@ntlworld.com for availability
GRAMOPHONE SPRINGS
We have kept our spring prices the same since 28/06/04 , rising postage and steel prices have forced a major price increase
All prices include UK postage and are subject to confirmation at time of order. Overseas buyers please note additional postage is required . Prices are per spring, quantity discounts are no longer available .
Measurements are in mm and are nominal and may be changed slightly as circumstances dictate .
SPRING DETAILS
Ref £
16mm 16 x 0.55 x 2,500 Eye/Eye 15,50
Miki 18 x 0.50 x 2,000 Eye /Eye 15.50
18 mm 18 x 0.55 x 2,500 Eye/Eye 15,50
3694 20 x 0.60 x 2,500 Eye/Eye 15.50
3731B 20 x 0.60 x 3,500 Eye/Eye 18.80
3731 20 x 0.65 x 3,500 Hub/Eye 19.95
3731A 20 x 0.65 x 2,850 1/8” L Hub/Eye 17.00
27044 22 x 0.55 x 2,700 Hub/Eye 15.50
27044A 22 x o.55 x 2,700 Eye/Eye 15.50
27044B 22 x 0.55 x 3,500 Eye/Eye 17.60
3529 25 x 0.55 x 4,250 Hub/Eye 20.80
3529A 25 x 0.55 x 4,250 Eye/Eye 22.80
3529B 25 x 0.55 x 5,900 Hub/Eye 24.00
12047B 25 x 0.55 x 2,745 Hub/Eye 17.40
12047E 25 x 0.55 x 2,745 Eye/Eye 17.40
3575 32 x 0.61 x 4,100 Hub/Hook 24.90
3575A 32 x 0.61 x 4,100 Hub/Eye 26.90
JRCK 32 x 0.61 x 5,000 Eye/Eye 24.90
Phonograph Springs
Gem 14.70
Standard/Fireside 25.60
Home 27.60
Pathe etc 13.00
Puck 13.00
Other springs are available on request.
Gramophone needles
High quality BRITISH steel, packed in bags of 100, marked in tones:-
EXTRA SOFT, SOFT, MEDIUM, or LOUD
Tones can be mixed to obtain quantity discounts.
10,000 100 packs £125.00 2,000 20 packs £35.00
7,000 70 packs £87.50 1,000 10 packs £22.00
5,000 50 packs £75.00 2-7 packs £2.70 each
3,000 30 packs £48.00 1 pack £4.00
Payment terms :- cash against order .Please make cheques payable to J. & M.Wholesale (Bedford) Ltd.,
Payment can also be made using Visa/Mastercard. We need Card No., Cardholder name and address and expiry date. Please note goods can only be sent to the Cardholders address . Small orders are sent by second class letter post, large orders by compensation fee parcel, unless requested otherwise, when additional postage will be required. The above address is for correspondence only.

Replica Phonograph Reproducers

We have made a range of replica Phonograph reproducers and gramophone soundboxes , which in the case of the phonograph reproducers are made all using sapphires not glass styli .

They are normally made to order but are often for sale on or Ebay site or shop see this link Phonograph Reproducers.
Replica Phonograph Reproducers and soundboxes

If you are not sure which reproducer you need you can always visit us every Saturday at the Westway market , under the Westway Flyover , Portobello Road Market, in London, you can email us for further details, or see this link to Portobello Green Market for details PORTOBELLO GREEN MARKET HOME PAGE

Pictures are in the following order Edison Model B Reproducer £74.00 , Clarke Johnson Soundbox £65.00 , Edison Model H Reproducer £75.00, Edison Model C Reproducer £75.00, EWC Excelsior Werke type £60.00 , Edison Model K 2 and 4 minute reproducer£103.00 , Puck type reproducer £56.00 , Pathe Orpheus type reproducer for fitting directly to the horn £56.00, Pathe Metal type reproducer £56.00, Columbia Heavy Eagle £70.00, Columbia Q £65.00 and lastly Columbia AT £65.00, other types are available please inquire

Buy 78s every Saturday and Sunday at Portobello Green Market under the Westway

Hello, if you collect 78rpm records, you can buy them every Saturday at the Westway market , under the Westway Flyover , Portobello Road Market, in London, you can email us for further details, or see this link to Portobello Green Market for details PORTOBELLO GREEN MARKET HOME PAGE

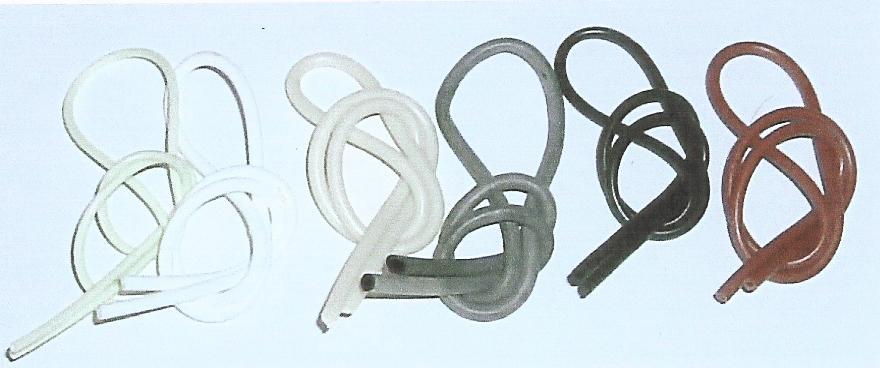

Rubber Gasket

Gramophone Soundbox Gasket 14” piece £1.50 including P&P (UK)

1) Red Rubber 3.2mm diameter medium wall thickness
2) Black Rubber 3 mm diameter thin wall thickness
3) Grey Rubber 3.9mm diameter thin wall thickness
4) NO LONGER AVAILABLE
5) White Rubber 3 mm diameter large wall thickness
6) White Rubber 2 mm Medium wall thickness
All sizes are nominal
Red tubing is used for most Aluminium diaphragms and for Pathe Mica soundboxes
White tubing is used for most Mica soundboxes except Pathe
1 and 4 and 5 are recommended for general use

Ebay Shop links

click the following links to find information on our Ebay shop

Gramophone springs for sale on Ebay

http://stores.ebay.co.uk/Gramophone-springs_Gramophone-Springs-Grease_W0QQcolZ4QQdirZ1QQftidZ2QQtZkm

Gramophone needles for sale on Ebay

http://stores.ebay.co.uk/Gramophone-springs_Gramophone-needles-and-Styli_W0QQcolZ4QQdirZ1QQftidZ2QQtZkm

Gramophone needle advice

http://stores.ebay.co.uk/Gramophone-springs/Gramophone-needles-advice.html

Spring fitting advice

http://stores.ebay.co.uk/Gramophone-springs/Gramophone-springs-fitting-advice.html

Gramophone advice

http://stores.ebay.co.uk/Gramophone-springs/Gramophone-advice.html

happy collecting and repairing !!

Want a part for a Gramophone or Phonograph ?

We will always try to help , if you have a gramophone or phonograph related problem ask us , we may be able to source a product or we may have an old stock item we can list on Ebay for you , no problem is too small for us to try , want a particular Phonograph or Gramophone Email us so we can put you on our wants list .

HMV 101 , 102 etc carrying handle

HMV Gramophone 101 and 102 portable carrying handle

We still have a small quantity of these original carrying handles available , they can be viewed at this link

http://cgi.ebay.co.uk/HMV-Gramophone-101-and-102-portable-carrying-handle_W0QQitemZ230022209081QQihZ013QQcategoryZ1442QQcmdZViewItem

Old Original Gramophone transfers

Old Original transfers can be bought at this Ebay link

http://stores.ebay.co.uk/Gramophone-springs_Gramophone-Needle-Screws-etc_W0QQcolZ4QQdirZ1QQfsubZ12QQftidZ2QQtZkm

You can see how the transfers are positioned at this link

http://soundgenpics8.blogspot.com/2006/05/varnish-transfers.html

other different transfers are available email jmw.bedford@ntlworld.com formore information

Gramophone parts and spares are always available

Columbia 100 motor and relevant parts from a cabinet can be bought on Ebay at this link

http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&ih=013&item=230024646693&rd=1&sspagename=STRK%3AMESE%3AIT&rd=1

HMV , The Collectors Guide To His Master's Voice Nipper Souvenirs

HMV , The Collectors Guide To His Master's Voice Nipper Souvenirs

£15.00 including UK Post and Packing ( We accept payment by Visa /Mastercard or Paypal or UK Cheque or UK Postal Order email for further information

Ruth Edge and Leonard Petts
Published 1977 EMI Group Archive Trust
1022 pages
Hundreds of Black and White pictures
Masses of Information for the Nipper collector
Original Published Price £20.00

Postage and packing. ( HEAVY WEIGHS NEARLY TWO KILOS PACKED )
UK £INCLUDED
Air Europe £4.19
Air Rest of World £11.76
Surface Rest of World £4.41
Surface Mail can take up to 10 weeks to be delivered

Questions and answers on a spring request may help other enquirers

Q ) Just wondering if you can help me, I just came across a Coronola portable gramophone that has a broken spring. I want to restore and repair this player but have absolutely no idea how I specify the spring. Can you help?

A ) The Coronola probably has a Garrard motor , if you taker the motor board out , on the base of the motor will be the number of the mechanism eg Garrard 20 or Garrard 30 etc , the springs for these are available on Ebay at the following link

http://stores.ebay.co.uk/Gramophone-springs_Gramophone-Springs-Grease_W0QQcolZ4QQdirZ1QQftidZ2QQtZkm

You can also see our spring fitting advice at this link

http://stores.ebay.co.uk/Gramophone-springs/Gramophone-springs-fitting-advice.html

If it is a Garrard motor with a different motor no or one with a different makers name let us know what the make and no is

Q ) I have taken out the wind up mechanism and the brand is marked as THORENS - Swiss made, any ideas?

A ) Most Thorens single and double spring motors use the Garrard 20 3694 20mm eye/eye spring , occasionally they take 1 " Eye/eye or 1" Hub / Eye springs this can be easily ascertained by measuring the depth of the spring barrel if the spring barrel will take a 1" spring you would then need to take the spring out to ascertain whether it has a Hub or eye fitting centre , also occasionally Thorens motors particularly if single spring may need a longer spring than the 3694 , the 3694 goes into spring barrels with a diameter up to approximately 72 mm if the spring barrel is around 82mm you would need a longer spring , this would be our reference 3731B

Q ) Thanks again for the info below.The measurements I have been able to make are as follows:Width of spring is 19mmInside diameter of casing is +- 65mmI have included a few pictures in the email and I hope that will make it clearerAs you can see from the photos the spring has broken in two. I can clearly see that the inside of the coil is attached via a slot in the spring and can now confirm that the outside end of the spring has a slot as well. The reason I can do this is that I just pulled the remainder of the spring out of the casing and it ( the casing ) flew across my workshop and nearly decapitated the dog. In it's flight ( the casings not the dogs ) I have now lost the screw device that attaches the outside end of the spring to the case, so I need one of those as well, if you have one for saleSorry for all the detail, but if you could give me your best guess on the spring I will place an order for it and the screw bit straight away

A ) I think you will find that the 3694 spring will fit into this spring barrel , the barrel should be deep enough for a 20 mm spring ,the screw which has gone missing is not original , this type of spring barrel has a cut out shape which is pressed into the barrel and the spring is hooked over the cut out , this has broken off at some time , you can recut a new V shape in the metal and push it into the barrel to locate the spring or use any nut and bolt which would have to be inserted from the inside through the spring hole and then through the hole in the barrel , tightening the nut on the outside later , you may need to grind the outside part of the nut and bolt to make it flusher with the outside of the spring barrel as sometimes it will interfere with the governor as it unwinds

Rubber Gasket for Soundbox Diaphragms

Rubber gasket for soundbox diaphragms, white for Mica diaphragm soundboxes, red for Aluminium diaphragm soundboxes, circular special diaphragm for HMV No4 and No2 soundboxes email for up to date prices

Earl Okins modified web page

In case you're a collector, looking for a good UK-based dealer in all things to do with the world of 78s, cylinders, the machines that played them and ephemera, just try Mike and June Child! Click on these links for springs and needles...

http://gramophonesprings.blogspot.com

http://gramophoneneedles.blogspot.com

...or if you have any requests for records or anything else 'gramophonic' or 'phonographic', just e-mail them at...

jmw.bedford@ntlworld.com

go to Earl's site for full details of his performances and much more!

Mica Price List, if you want a clearer copy of this price list or of the spring or 78rpm sleeve list email us using the email link

78 rpm Record sleeves

J. & M. Wholesale (Bedford) Ltd.,
16 Hardwick Road, Bedford, MK42 9LF

Tel. 01234 340829 Int . +44 1234 340829
Email jmw.Bedford@ntlworld.com

White Cardboard 78rpm record sleeves

Size Quantity Price P&P
10" 25 10.00 4.50
50 18.00 7.00
100 30.00 7.00
250 75.00 10.00
12” 25 10.00 4.50
50 18.00 7.00
100 31.00 7.50
250 77.50 11.00

Aluminium phonograph Horn

This is a medium aluminium phonograph horn for use on Pathe, Columbia, etc,and early Edison Standard phonographs, bell diameter 10" (25.5cm) diagonal size 13" (33cm) email for current price

Aluminium Phonograph Horn

This is a small aluminium horn for use on Pathe, Columbia, etc Phonographs and also on early Edison Gem phonographs Bell diameter 8 1/2" (21.5cm) Diagonal size 12 " email for current price

Aluminium Phonograph horn

This is a large aluminium horn suitable for Pathe, Columbia, etc and Early Edison Home Phonographs Bell diameter 12" (30cm) Diagonal Size 16" (40cm) email for current price

Edison Standard Horn

This phonograph horn is for and Edison Standard or Edison home Phonograph but can also be used on an Edison Gem Phonograph although not strictly correct many people like it as it is aesthetically pleasing, email for current price

More 78's info from Earl Okin

JUNE & MIKE CHILD
78rpm specialists

Address:

J & M Wholesale (Bedford) Ltd.

16, Hardwick Road,

Bedford, MK42 9LF.

--------------------------------------------------------------------------------
Tel: 01234.340829.

Tel. from outside the UK: +44.1234.340829.

E-Mail: jmw.bedford@ntlworld.com

--------------------------------------------------------------------------------
I have been a customer of June and Mike Child for some years now. They live out of London and, as well as running their own shop, they regularly sell in markets all over Southern England.

As well as selling 78s and cylinders of all sorts, they also deal in gramophones, phonographs and parts for them (such as springs). They will also service or repair machines, if you can get the machines to them.

Finally, they are a good source for 78rpm and cylinders as well as new hard wearing cardboard record-covers of all sizes 7", 10" and 12"

If you can't read the details of their stock on the pictures below, just 'phone them or write to them. They are always fair pricewise and generally nice people to do business with.

78 rpm records

78rpm records are available for sale every Saturday at Portobello Road, London, see following

Mike & June Child have a stall selling machines, spare parts & 78's on Portobello Road Market, London. Nearest Tube Ladbroke Grove.
Tony Langford writes: the stall is under the tent, by the Westway elevated motorway. Every Saturday 0900 -1700. They can be contacted by telephone on 01234-340829
Terence Brown writes: Good stocks of 78's, all types, usually changed weekly, mostly at a £1, more for scarce items. Gramophones and Phonographs at competitive prices, springs, sound boxes, needles and Gramophonalia. Also a repair and refurbishment service.

Gramophone and Phonograph Needles

Hello if you are interested in information about needles for gramophones or Phonographs you can email us at jmw.bedford@ntlworld.com or see our separate Blogg at
http://gramophoneneedles.blogspot.com
Mike
